Dynamic types

General

The object for a dynamic type is an additional entry of a property. You can choose between an additional article qualification or an additional stock qualification. Additional data fields can be added to the existing COGLAS data fields.

Data interface

The dynamic type can be created individually in COGLAS and operated via the standard interface. The settings of the dynamic type created can then be used for the data interface.

When exporting and importing article master data, the dynamic types you have created yourself are also taken into account.

The following parameters are available for selection:

Dynamic type	Field	Article / Stock qualifications
Interface name	Free text	Example = COLORCODE The interface name can be freely selected. Spaces should be avoided in the name. The interface name must be unique. The name is used in the data interface.
Display name	Free text	Example = colour code The display name is freely selectable.
Type	Selection	Available selection: Date Integer Cancellable truth value Value list Character string

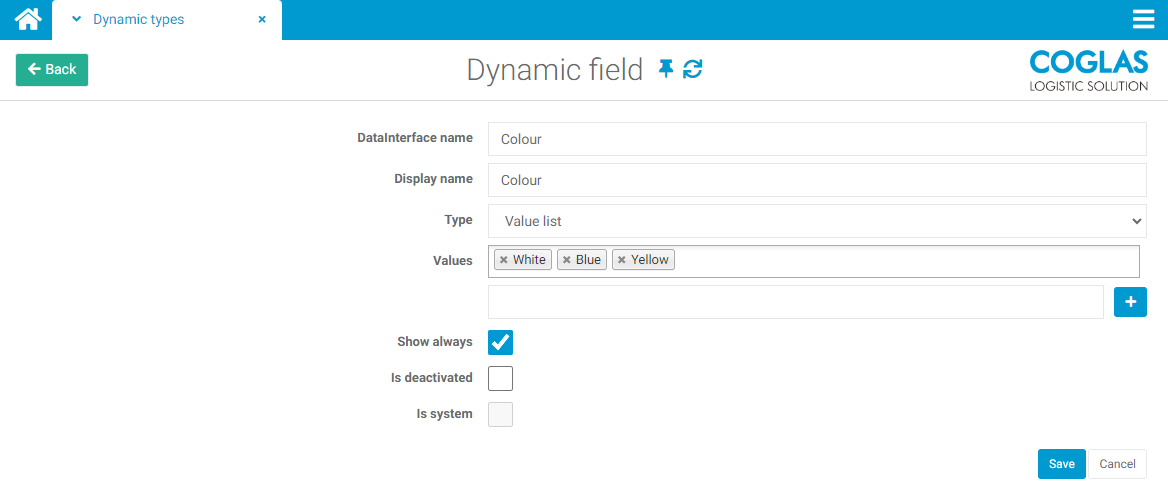

Show always	Checkbox	Display and use dynamic type in COGLAS. Active Display of the dynamic type is always active. Inactive No display if there is no initial value. If the dynamic type has a value, it is displayed. Incl. display of the ‘Recycle bin’ symbol. See image ‘Dynamic type field’. Click on ‘Recycle bin’ to remove the value of the dynamic type. Then no more display.
Is deactivateted	Checkbox	Deactivate the dynamic type. The display in COGLAS is suppressed. If article objects are still maintained with a value, these are no longer displayed and no longer taken into account.
Is system	Checkbox	COGLAS internal status. Can only be activated by COGLAS. If active, the object cannot be changed or deleted in COGLAS.
