2 Equipment types

General

Loading aids are items or devices used to facilitate the transport and storage of goods.

Examples of loading aids include cartons, Euro pallets, roll containers, wire mesh boxes, and crates.

These loading aids play a crucial role in warehouse and logistics management as they help improve efficiency and safety in handling goods. They enable goods to be neatly stacked, easily moved, and protected from damage.

In COGLAS, loading aids are required for most processes.


Adding Loading Aids Manually

The following section provides detailed instructions on how to manually add loading aids in COGLAS.


Video


Step by Step Guide

Description


1

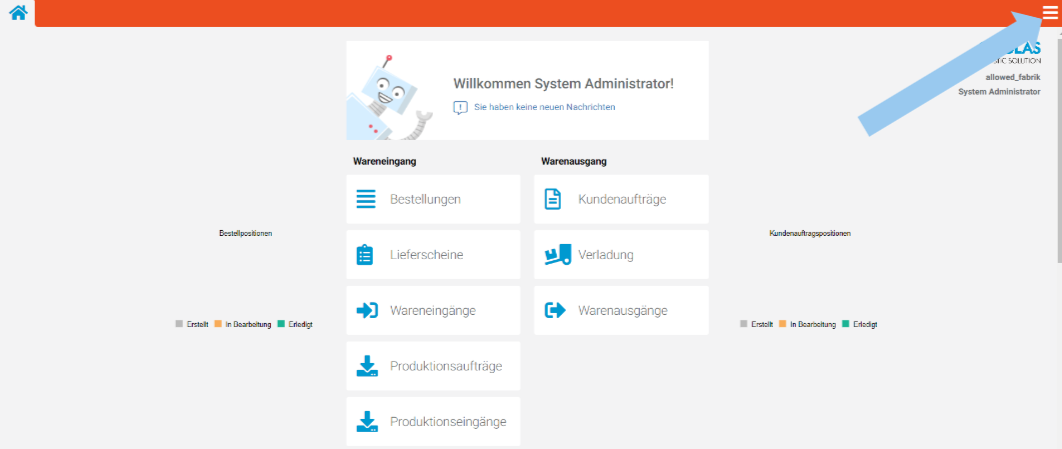

Click on the burger menu to access the system.

2

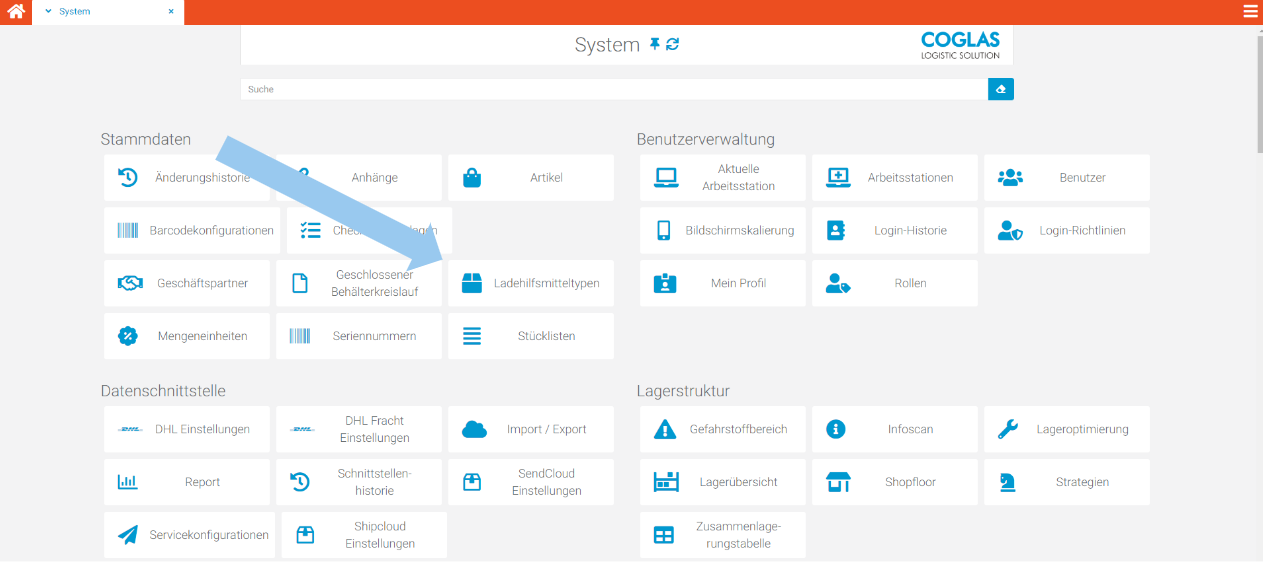

Select either from the "Master Data" tab or use the search bar to choose "Loading Aid Types".

3

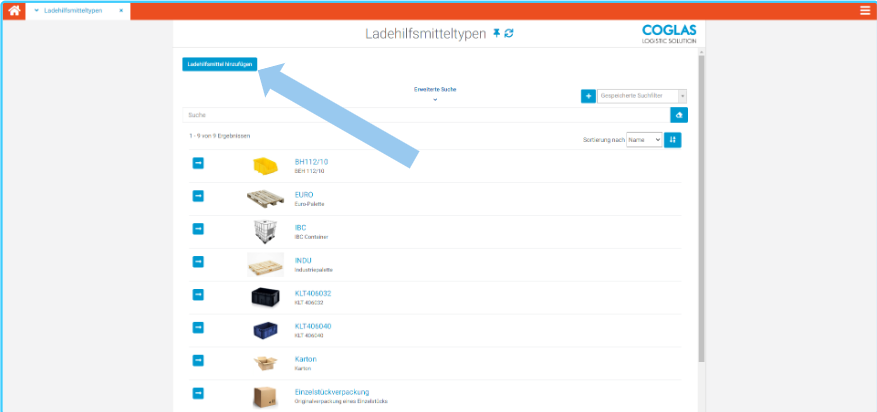

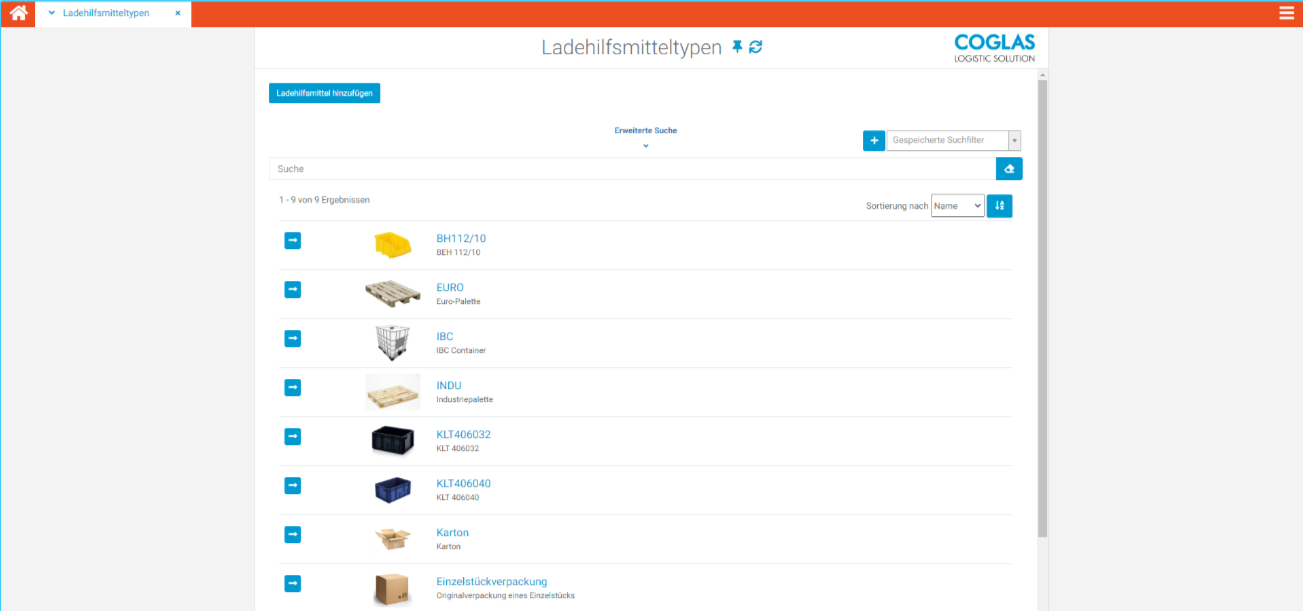

Choose the "Add Loading Aid" option.

4

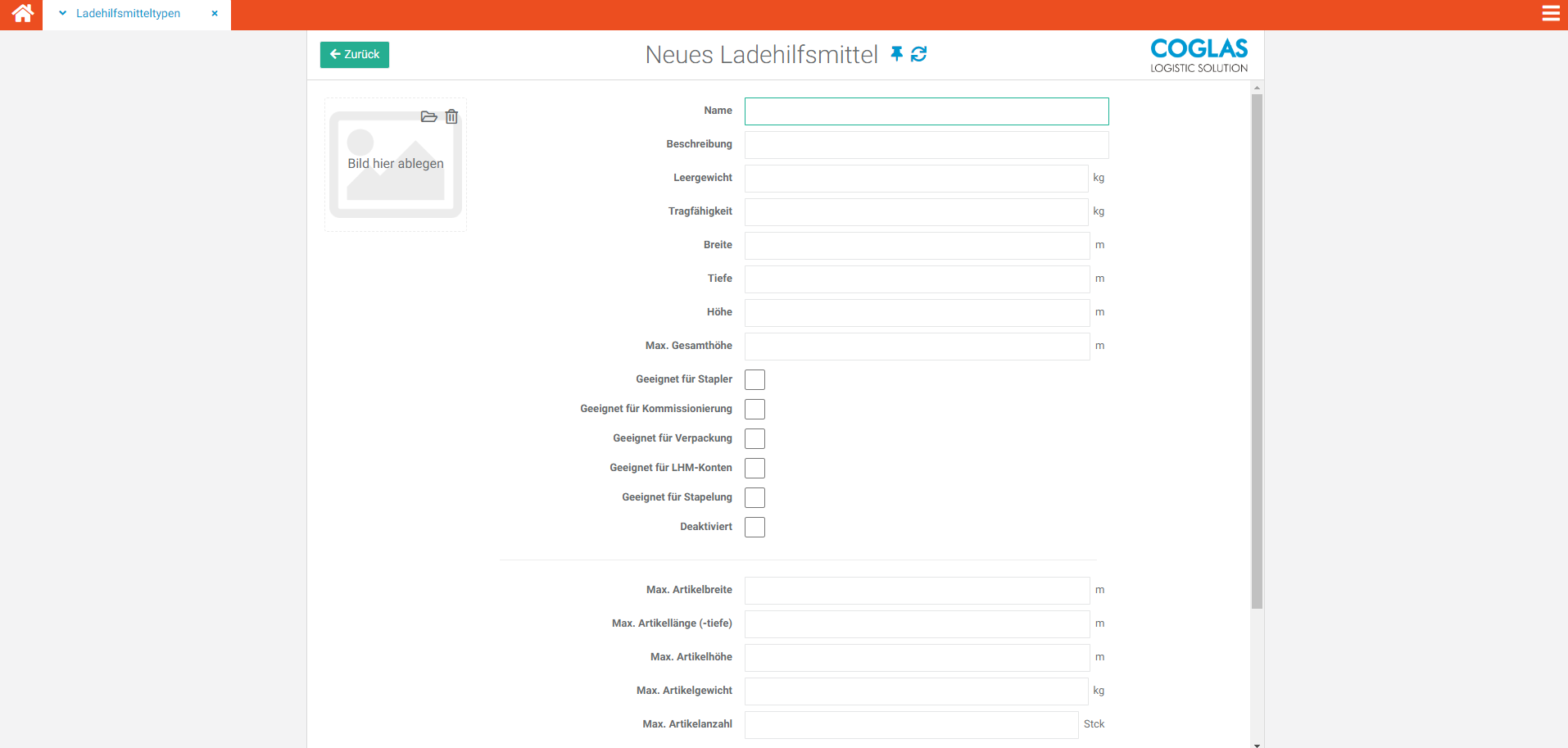

You are now in the "New Loading Aid" view.

5

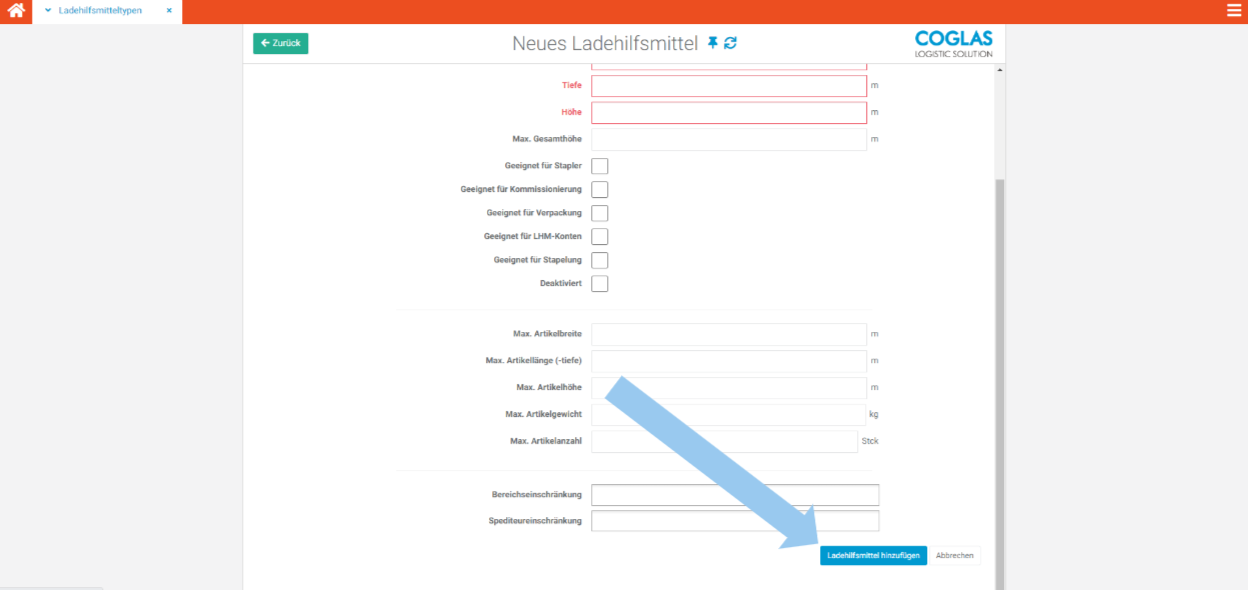

Fill out the required information.

6

Here, a distinction is made between mandatory and optional fields.

7

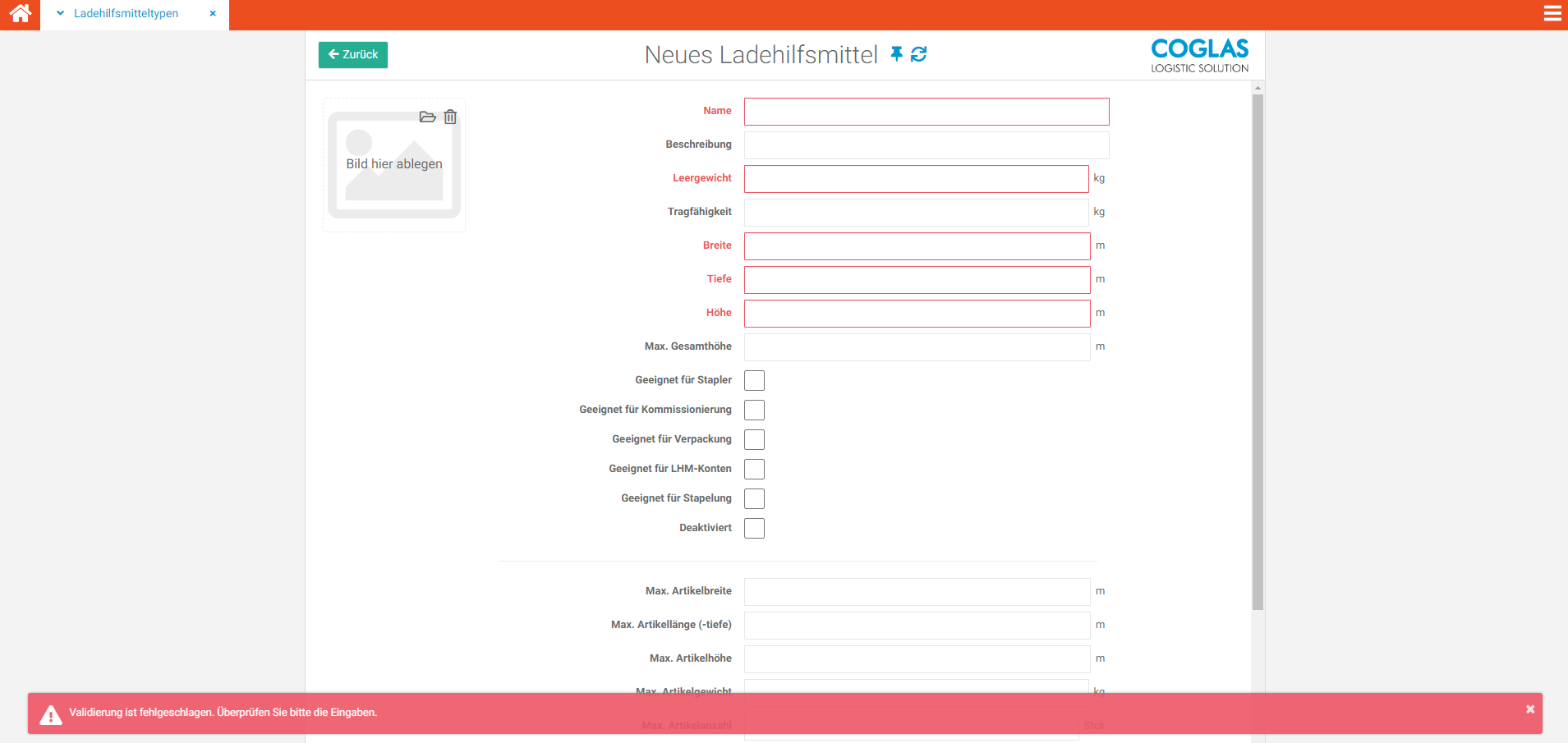

The mandatory fields must be filled out to proceed in COGLAS (see explanation of input options). If these are not completed, an error message will appear.


Eingabemöglichkeiten

Mandatory Fields

Description

Name

Name of the loading aid.

Tare Weight

Weight of the loading aid without goods in kilograms.

Width

Width of the loading aid in meters.

Depth

Depth of the loading aid in meters.

Height

Height of the loading aid in meters.

Optionale Felder

Beschreibung

Description

The loading aid can be described.

Load Capacity

The maximum load capacity of the loading aid can be specified in kilograms.

Max. Total Height

The maximum total height with goods can be specified in meters.

Suitable for Forklifts

Selection field: It can be chosen whether the loading aid is suitable for forklifts.

Suitable for Picking

Selection field: It can be chosen whether the loading aid is suitable for picking processes.

Suitable for Packaging

Selection field: It can be chosen whether the loading aid is suitable as packaging.

Suitable for LHM Accounts

Selection field: It can be chosen whether the loading aid is suitable for LHM accounts.

Deactivate

Selection field: The loading aid can be deactivated.

Max. Item Width

The maximum item width that can be loaded on the loading aid can be specified in meters.

Max. Item Length (Depth)

The maximum item length/depth that can be loaded on the loading aid can be specified in meters.

Max. Item Height

The maximum item height that can be loaded on the loading aid can be specified in meters.

Max. Number of Items

The maximum number of items that can be loaded on the loading aid can be specified.

Area Restriction

It can be specified in which area the loading aid is allowed to be used.

Carrier Restriction

It can be specified which carrier is allowed to use the loading aid.


→ back to COGLAS processes
→ back to COGLAS menu
